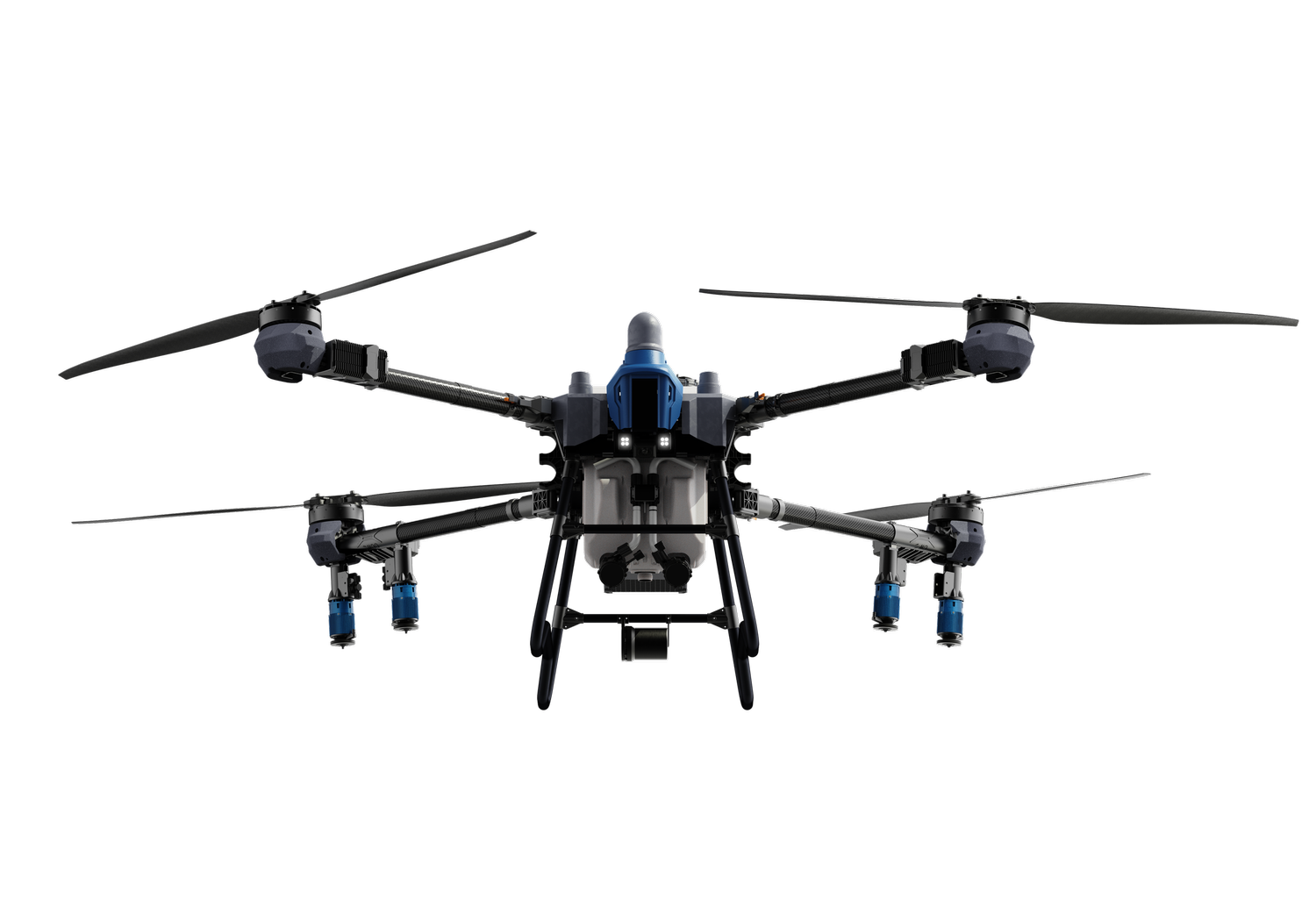

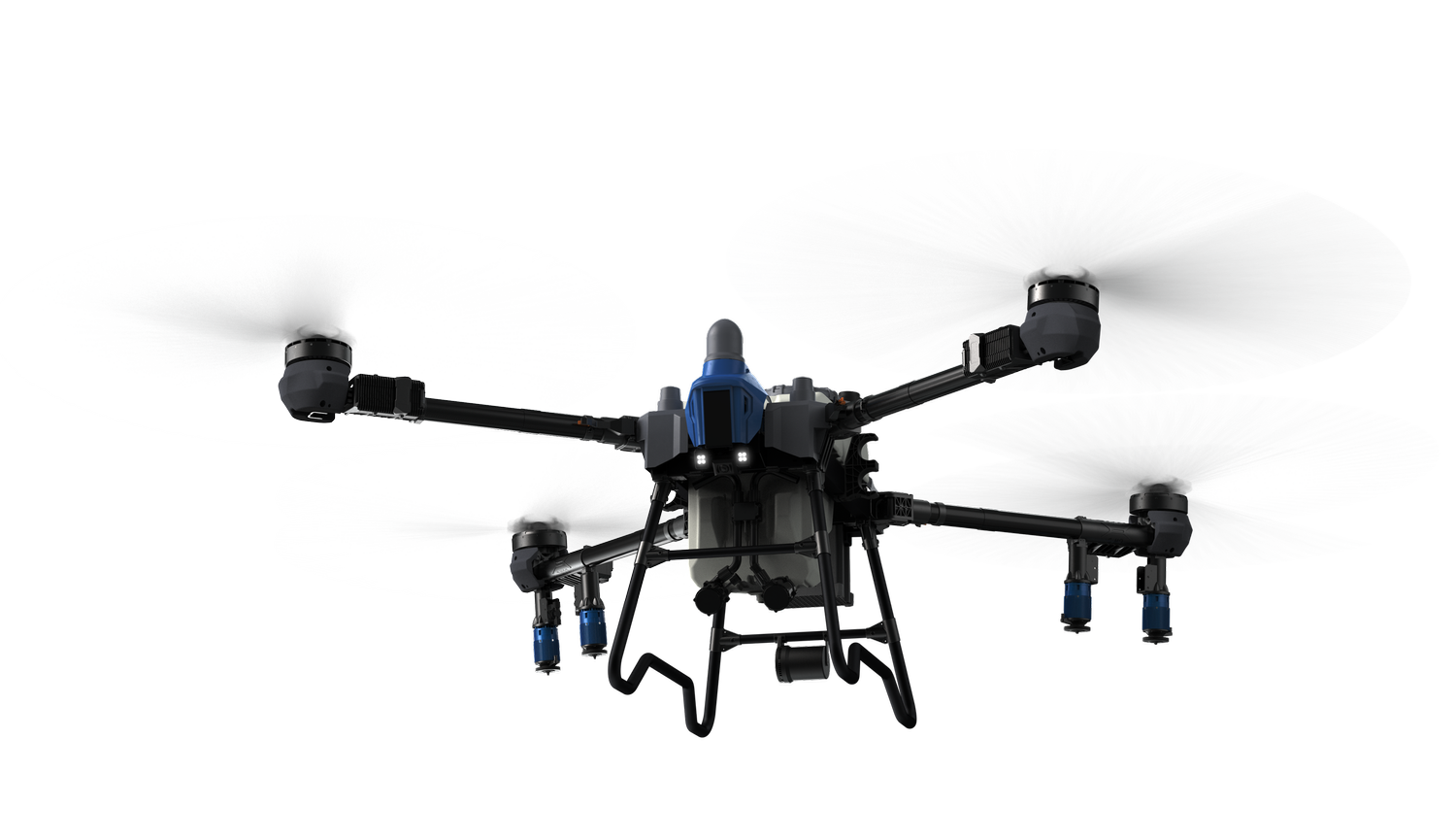

EAVision J150
EAVision · Flagship
EAVision J150
- 20 gallon spray tank | 180 pound spreader capacity
- 30 mph max spraying speed with full obstacle avoidance and terrain following enabled
- Adjustable droplet sizes from 10-500+ microns
- 360 degree spherical obstacle avoidance
- Every unit comes standard with 4G connectivity
- 45,000 mAh battery with airflow cooling
- Upgraded 63" propellers provide powerful lift and balance
Or Call
- FAA Part 107 & 137 Ready
- Expert Field Support Included
- Nationwide Deployment Available
Description
The EAVision J150 is the largest drone in the EAVision line and the one built for operators covering serious acres. A 20-gallon tank and a 10.5 gallon-per-minute flow rate mean fewer refills and more ground per flight. Run it as a sprayer, or swap to the 180-pound spreader for fertilizer, seed, and cover crop work off the same airframe.It flies with full 360-degree obstacle avoidance and terrain following, holds 30 mph through a loaded tank, and runs all day on a 45,000 mAh air-cooled battery. EAVision drones put over a million acres on US soil in 2025. This is the platform behind that number.We sell the J150, set it up on your ground, and fly it with you on day one. Parts stay stocked in Rossville, and service runs through us, not a help line in another state.Base package includes
- J150 drone and remote control
- 3 batteries
- Charger
- 4-nozzle kit
Technical specificationsFeature Specifications
Spray tank 20 gallons
Spreader capacity 180 pounds
Spray flow rate 10.5 gal/min
Swath 35 to 40 ft (4-nozzle mode)
Coverage Up to 65 acres/hr at 2 GPA
Max spraying speed 30 mph (45 ft/s)
Droplet size10 to 500+ microns
Obstacle avoidance 360-degree spherical
Battery 45,000 mAh, airflow cooling
Charge system 13,000W fast charge, dial-down capable
Propellers 63 inch
Connectivity 4G standard on every unit
Total weight 175 lbs (130 lbs without battery)SprayingThe J150 carries 20 gallons and pushes 10.5 gallons per minute through third-generation CCMS nozzles, with adjustable droplet sizing from fine mist to heavy canopy work. Run it in 4-nozzle mode for the widest, most even pattern.SpreadingSwap the tank for the 180-pound auger-fed spreader and the J150 handles dry fertilizer, seed, and cover crop. Open-top design loads fast and the auger feeds wet or dry product without bridging.A good fit forLarge row crop spraying and spreading, high-volume specialty crop work, and sloped or terraced fields a ground rig can’t run cleanly.
FAQS:
How many acres can the EAVision J150 cover per hour? Up to 65 acres per hour at a 2 gallon-per-acre rate. Real-world coverage depends on field size, refill time, and conditions, but the 20-gallon tank and 10.5 gallon-per-minute flow rate mean fewer refills and more ground per battery than smaller drones.What size tank does the J150 have? 20 gallons, the largest in the EAVision line. It also runs a 180-pound spreader for dry fertilizer, seed, and cover crop, so the same airframe sprays and spreads.How fast does the J150 fly while spraying? Up to 30 mph (45 feet per second) with full obstacle avoidance and terrain following enabled. It holds that speed through a loaded tank and uphill, on upgraded 63-inch propellers.Do I need a license to fly the J150 commercially? Yes. Commercial ag spraying requires an FAA Part 107 certificate, a Part 137 operator certificate, and a state pesticide applicator license. Hunsinger is Part 107 and Part 137 certified and licensed to spray in Illinois and Indiana, and we help operators through the FAA exemption and Part 137 paperwork.What’s included in the base J150 package? The drone and remote control, three batteries, a charger, and the 4-nozzle kit. We set it up on your ground and fly it with you on day one rather than shipping it and leaving you with a manual.How wide is the J150’s spray swath? 35 to 40 feet in 4-nozzle mode, sometimes wider depending on height, speed, and product. Agri Spray testing shows four nozzles produce a wider, more even pattern than two.What happens if the J150 needs service or parts? Common service parts are stocked in Rossville, so a Tuesday breakdown is usually flying again by Friday. Service runs through Hunsinger directly, not a manufacturer help line in another state. We service EAVision in-house and coordinate warranty work.
